N-SPEX Footage in 2K Resolution
N-SPEX Mega Stix IP Cameras
N-SPEX MEGA STIX IP to our line of N-SPEX STIX Vehicle Damage Inspection System. Each pair of MEGA STIX IP uses 6 state of the art IP 4 Megapixel cameras to record the condition of each vehicle with a total of 24 megapixel resolution per set. The IP Cameras transmit video over standard Cat5e/Cat6 cable to the NVR.
The N-SPEX MEGA STIX IP system of Entry and Exit Arches and document the condition of every vehicle that enters and or exits your property. It’s easy for customers to blame your employees or equipment for damage, but most of the time the damage is either pre-existing, (but not discovered until an after-wash inspection), or the damage occurred after the vehicle left your facility.
Without proof of when the damage was present, you can ultimately be held liable for almost any claim presented.
Car washes that have the N-SPEX STIX system have reported that the system has paid for itself in less than 6 months.
In fact, one Operator says that 2 claims in the same month that were avoided with solid evidence from the N-SPEX system, more than paid for the entire system.
Each pair of N-SPEX MEGA STIX IP contains a total of 6 IP High Resolution 2K 4 megapixel cameras, Pre-Assembled, Pre-Focused and Pre-Mounted.
These High-Resolution cameras are pre-adjusted and pre-focused to provide the perfect solution to the viewing angles and distances you need to adequately document the condition of vehicles entering and leaving your facility. This makes installation a snap!
The N-SPEX STIX will give you a view of:
Left Side STIX: Left Top of Vehicle, left Side, Front of Vehicle & License Plate
Right Side STIX: Right Top of Vehicle, Right Side, Rear of Vehicle & License Plate
Download N-SPEX STIX Classic

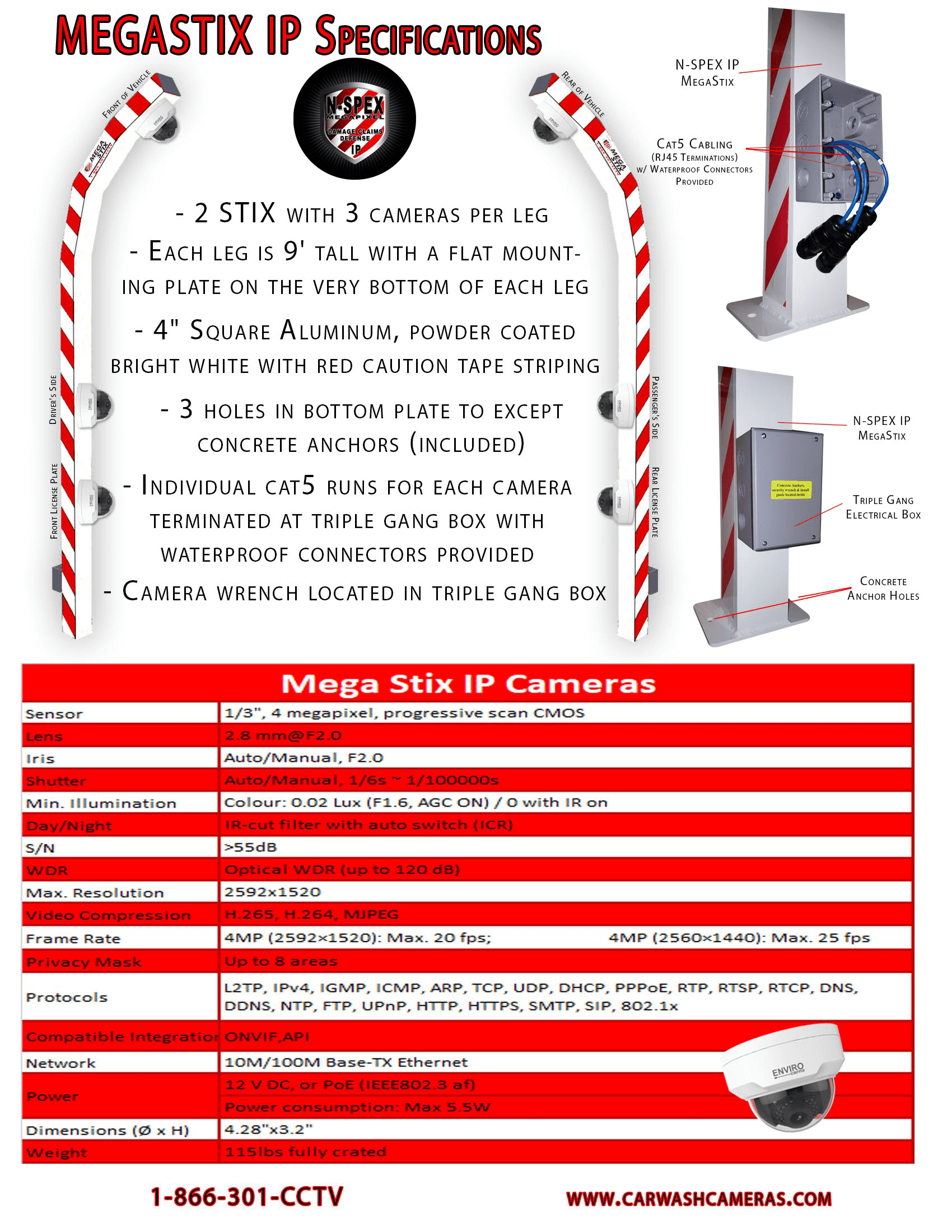

N-SPEX STIX Classic – Specifications
| Dimensions | 9′ (feet) Tall x 4″(inch) Square – Mounting Base 8″ x 6″
1st camera height – 25″ from base to bottom of camera 2nd camera height – 45″ from base to bottom of camera 3rd camera height – 88″ from base to bottom of camera |
| Surface Attachment | 3 – 3/8″ x 3″ Concrete Anchors (included) |
Cameras
| Image sensor | 1/3″, 4 megapixel progressive scan Cmos |
| Resolution | 2K 2592 x 1520 |
| S/N ratio | >55db |
| Min. Illumination | color: 0.02 Lux (F1.6, AGC ON) /) w/IR on |
| Shutter Speed | Auto/Manual, 1/6s – 1/100000s |
| Power source | PoE {IEEE802.3 af} or 12v DC |
| WDR | Optical WDR (up to 120db) |
| Lens | 2.8 mm@F2.0 |
| Language | English |
| Day/Night | IR Cut Filter with auto switch (IRC) |
| Intergration | ONVIF, API |
| Network | 10M/100M base-TX Ethernet |
| Weight | 115 lbs fully crated |
Installation / Technical Information
Power Consumption
330mA
Maximum Distance for 12v DC over standard 18/2 power wire for each N-Spex Mega Stix is 200′ feet from the power source
N-SPEX STIX Classic Installation Instructions
N-SPEX MEGA STIX Footage
N-SPEX MEGA STIX Installed
Shipping Info
Warranty Info
CAMERAS:
The camera system has a 3 year warranty.
STIX:
The powder coating on the Stix has a 90 day warranty while the metal Stix themselves have a 1 Year Warranty.
| Camera Resolution | 2K, 4K |
|---|
